PIPELINE HOLDING EQUIPMENT

Pipe Stand Double

A Single Welded, Mechanically Joined Two-Point Support Unit Covering 1" to 24" (33.4-600 mm)

Dual-PointRigid Frame

1" to 24"Capacity

1 Ton and 2.2 TonLoad Ratings

4 ModularHead Options

HEAVY DUTY TWO-POINT PIPE SUPPORT SOLUTIONS

1" - 24" (33.4-600 mm)

Full Diameter Range Coverage

1.0 and 2.2 Ton Capacity

Heavy-Duty Working Load Ratings

Independent Height Adjust

Dual Spindle Leveling Mechanism

TRUSTED IN PIPELINE INDUSTRIES WORLDWIDE

PIPELINE CONSTRUCTION

FABRICATION WORKSHOPS

OIL AND GAS SITES

OFFSHORE AND INDUSTRIAL

TWO-POINT SUPPORT Pipe Stand - Double

PIPELINE HOLDING EQUIPMENT

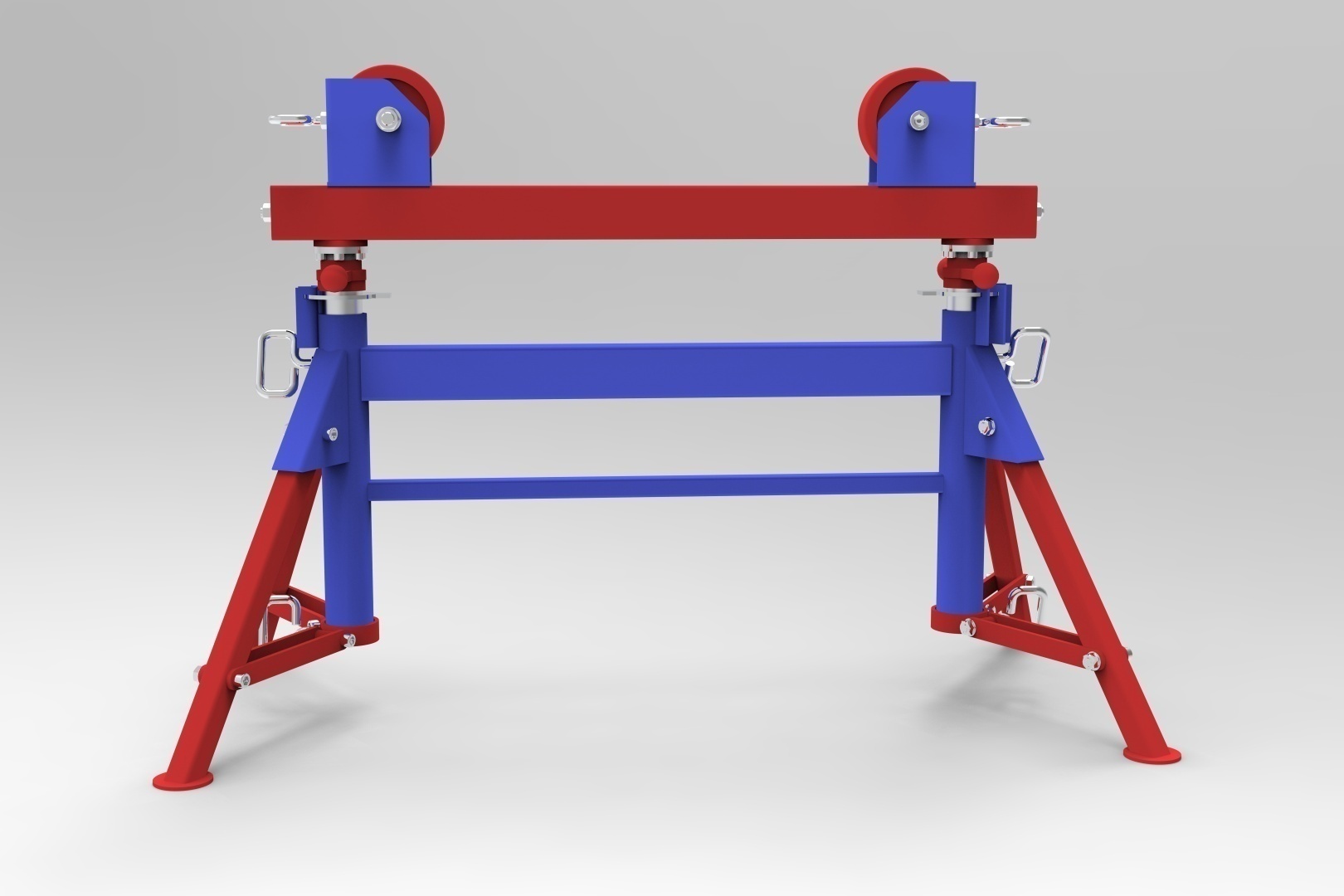

Pipe Stand - Double

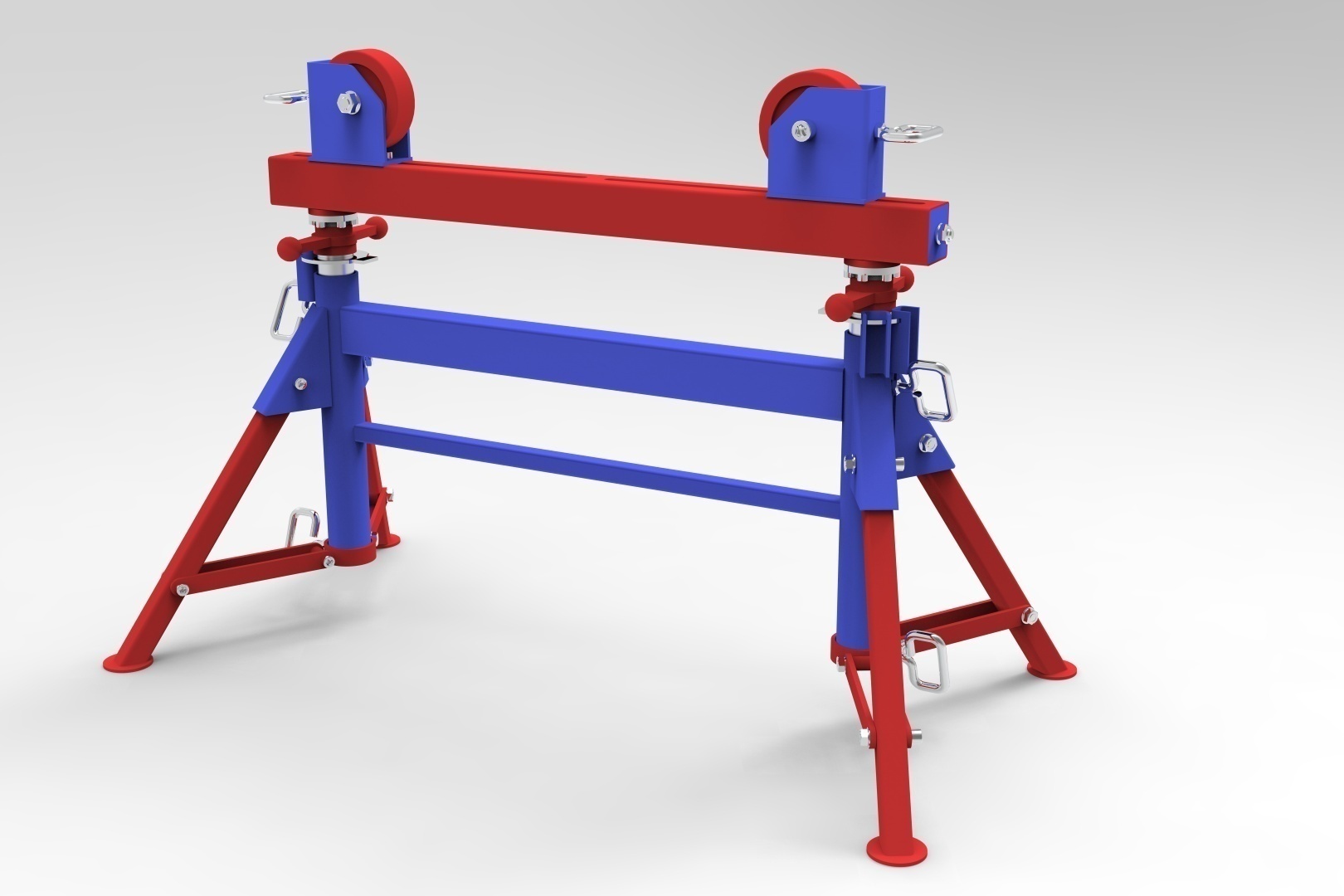

Heavy-duty welded and mechanically joined dual-column pipe stand engineered to provide rigid two-point support, preventing sagging and misalignment on 1" to 24" pipe strings.

Pipe Diameter Range 1" - 24" (33.4 - 600 mm)

Working Load per Point 1.0 Ton or 2.2 Ton (Selectable)

Head Iron Design Double - Welded Mechanically Joined Frame

Bearing Model Options Metal, Stainless, Polyurethane and Steel Rollers

PRODUCT OVERVIEW

PIPE STAND - DOUBLE

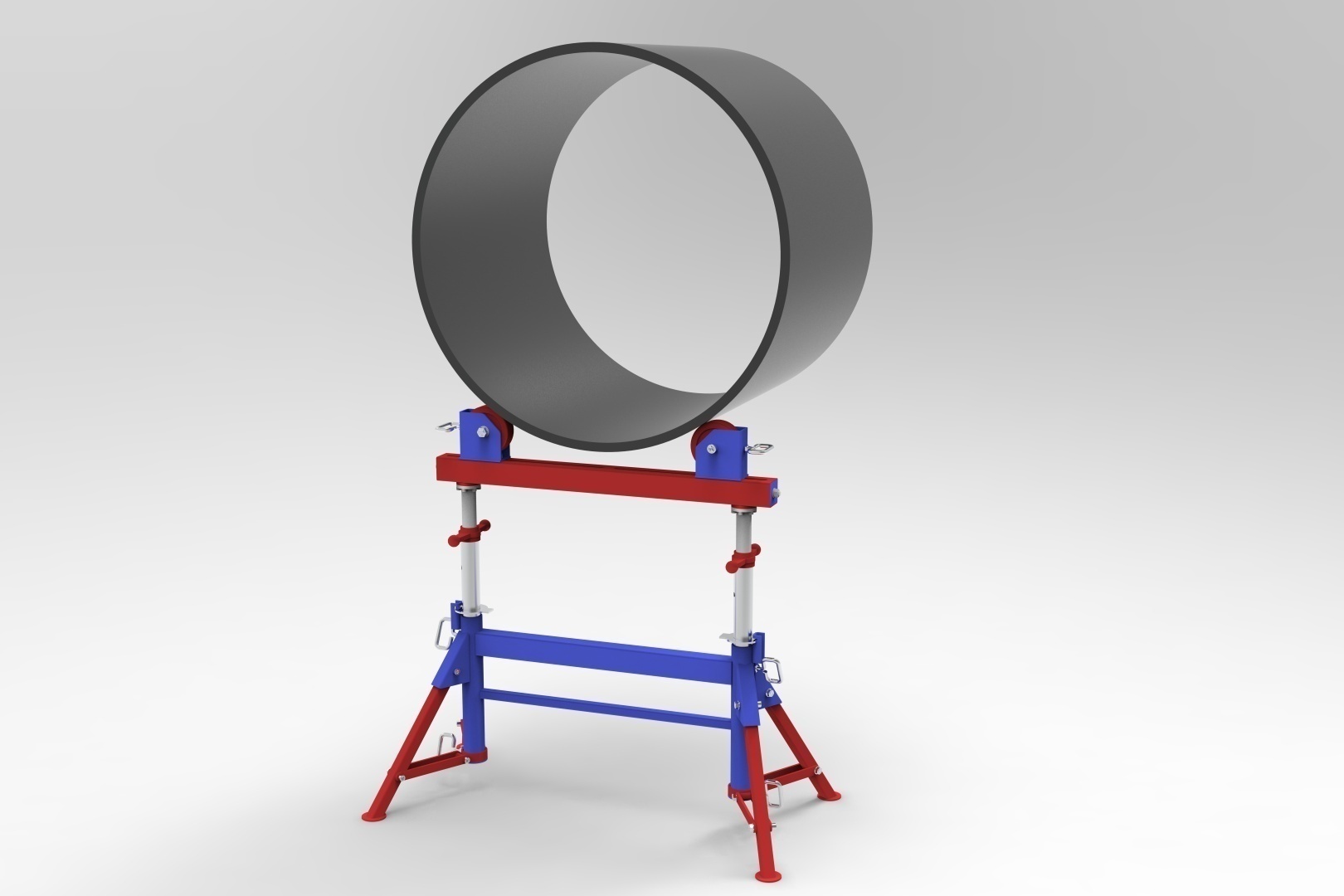

Longer pipe sections benefit from support at two points rather than one, keeping the joint steady and preventing the sag or shift that can throw off alignment on extended runs. Technical Pipeline's Pipe Stand-Double is built as a single welded, mechanically joined unit — two of our standard adjustable support columns connected by a rigid frame — rather than two separate stands positioned side by side. Each of the two support points covers 1" to 24" (33.4-600 mm) and is rated for a working load of 1 or 2.2 tons, selectable to match the actual pipe weight. Four bearing surface options — V-bed metal, V-bed stainless steel, V-bed polyurethane rollers, or V-bed steel rollers — let crews choose the contact surface best suited to the pipe's coating and material, with the roller options also allowing the supported pipe to be rotated for all-position access during welding. Both support heads remain independently height-adjustable within the welded frame, so the unit can be leveled and set to the working height needed for the job.

Technical Specifications

Head Iron Design	Double - welded, mechanically joined dual-support unit
Pipe Diameter Range	1" - 24" (33.4 - 600 mm)
Working Load Options	1 ton or 2.2 tons per support point
Pipe Bearing Model Options	V-bed metal, V-bed stainless steel, V-bed polyurethane rollers, V-bed steel rollers
Typical Use	Longer pipe sections, two-point support, extended fabrication runs

ENGINEERING ADVANTAGES

KEY FEATURES

Engineered to provide rigid two-point support, eliminate pipe sag, and speed up welding operations.

RIGID FRAME

SINGLE WELDED UNIT

Single welded, mechanically joined unit - not two separate stands, ensuring a rigid, stable two-point support.

WIDE RANGE

1 TO 24 INCH DIAMETER

Covers 1" to 24" (33.4-600 mm) at each support point to accommodate standard and heavy-wall pipes.

HEAVY CAPACITY

1 OR 2.2 TON LOAD

Working load of 1.0 Ton or 2.2 Tons per point, selectable to match actual pipe weight and safety requirements.

MODULAR HEADS

4 BEARING OPTIONS

Four bearing surface options: V-bed metal, stainless steel, polyurethane rollers, or steel rollers.

ROLLER HEADS

360 DEGREE ROTATION ACCESS

Roller bearing options allow the supported pipe to rotate smoothly for all-position circumferential welding access.

DUAL SPINDLES

INDEPENDENT ADJUSTMENT

Both support heads remain independently height-adjustable within the shared frame for precision leveling.

ZERO SAG

SAG AND MISALIGNMENT REDUCTION

Reduces sag and misalignment risk on longer pipe sections, ensuring uniform joint gaps and root pass quality.

HEAVY STEEL

WORKSHOP AND FIELD TOUGH

Built from structural steel to withstand rugged workshop staging and demanding field pipeline construction sites.

PIPE STAND - DOUBLE SIZING AND RFQ TABLE

Model Type	Pipe size mm.	Pipe size inch	Force type	Actuation Type	Force shape	Recommended Wall Thickness Schedule 40	Kg
TPSD 0701 124	33.4 mm - 600 mm	1" - 24"	V-bed, metal	Trapezoidal Screw	-	Double	1.000
TPSD 0701 124	33.4 mm - 600 mm	1" - 24"	V-bed, stainless steel	Trapezoidal Screw	-	Double	1.000
TPSD 0701 124	33.4 mm - 600 mm	1" - 24"	V-bed, polyurethane rollers	Trapezoidal Screw	-	Double	1.000
TPSD 0701 124	33.4 mm - 600 mm	1" - 24"	V-bed, steel rollers	Trapezoidal Screw	-	Double	1.000

Select your required bearing surface and working load capacity (1.0 Ton or 2.2 Ton) to generate an instant RFQ.

APPLICATIONS AND FIELD USE

FIELD AND WORKSHOP APPLICATIONS

Engineered to provide stable two-point support across fabrication yards and pipeline construction sites.

Staging and Supporting Longer Pipe Sections

Staging and supporting longer pipe sections before welding, keeping joints steady and preventing sagging or shifting.

Workshop Pipe Spool Fabrication

Workshop pipe spool fabrication requiring rigid two-point support for precise alignment and rapid fitting.

Field Staging Along Pipeline Right-of-Way

Field staging along the pipeline right-of-way, offering dual height-adjustable support on uneven terrain.

Rotating Pipe on Roller Heads for All-Position Welding

Rotating pipe smoothly on polyurethane or steel roller heads for full 360 degree all-position welding access.

Explore Range

OTHER PIPELINE HOLDING EQUIPMENT PRODUCTS

SINGLE STAND SERIES

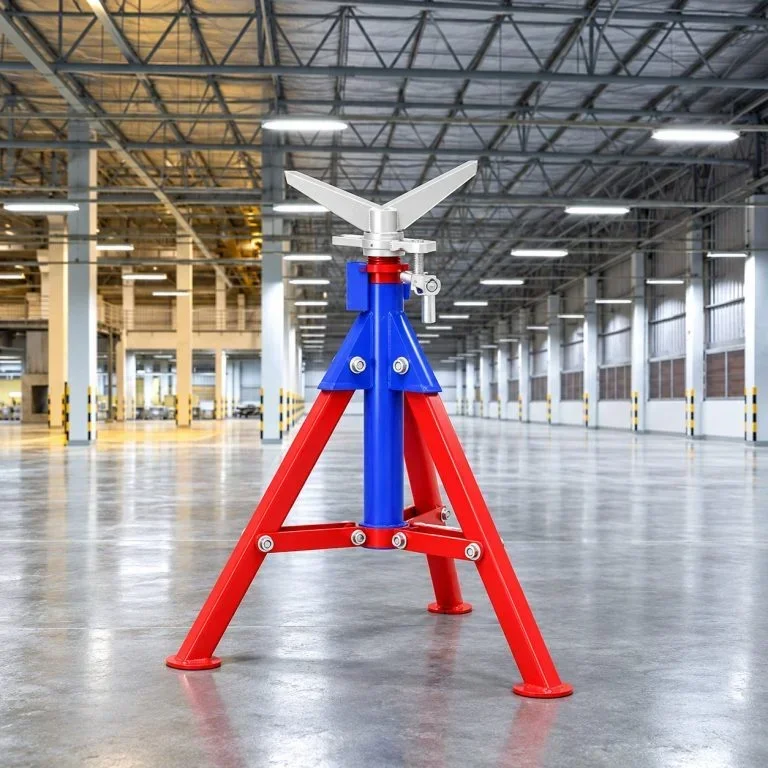

Pipe Stand Single
