Beam Clamp Rigging Rollers
I-Beam Mounted Pipe Rollers for Racks & Confined Modules (20" - 48")
Not every pipe installation happens in open ground. For refineries, power plants, and modular skids where cranes can't reach, Technical Pipeline's Beam Clamp Rigging Rollers clamp directly to structural I-beams to provide 1, 5, or 10-ton rolling support without welding or drilling.
20" - 48"
Pipe Diameter (508-1219 mm)
1 / 5 / 10 Ton
Working Load Options
I-Beam Clamp
Direct Flange Mounting
Pipe Handling in Racks, Modules & Tight Spaces
Purpose-built for pipe rack corridors, process modules, and plant retrofits where overhead crane hooks cannot access.
Overcoming Crane Access Restrictions in Elevated Pipe Racks
Engineered for Rapid Setup & Safe Load Transfer
Transforms structural steel beams into high-capacity pipe handling tracks in minutes.
Direct I-Beam Flange Clamping
Clamps directly onto structural I-beam and H-beam flanges without hot work permits, structural drilling, or weld modification.
Selectable 1, 5 & 10 Ton Ratings
Allows rigging engineers to match the roller's working load capacity to the exact pipe schedule and span weight requirements.

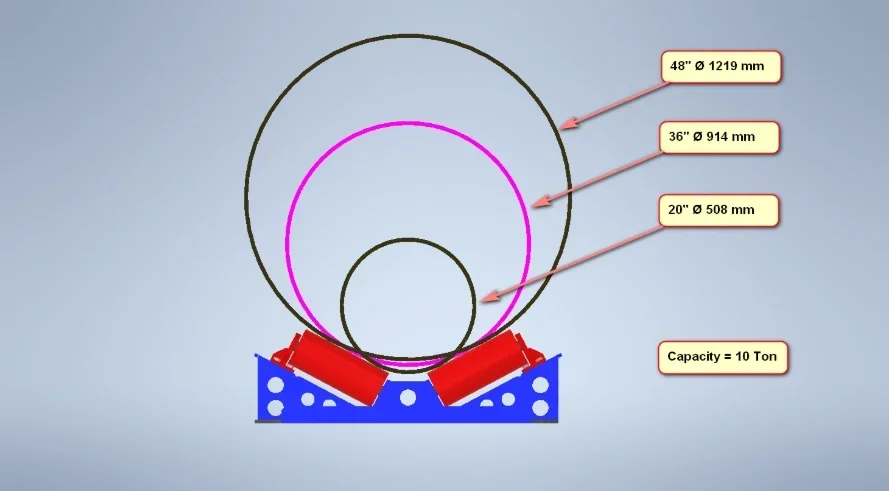

20" to 48" Wide Diameter Span
Single head-iron geometry cradles heavy industrial process and transmission pipe diameters from 508 mm up to 1219 mm.
Smooth Longitudinal Launching
Sealed heavy-duty rolling bearings allow pipe strings to be pushed or pulled smoothly through multi-tier elevated racks.
Coating-Safe Roller Surfaces
Polyurethane-coated contact surfaces protect factory anti-corrosion coatings and internal line insulation from damage.
Compact Modular Profile
Slim profile fits effortlessly between dense rack tiers, overhead piping, and structural braces where cranes cannot operate.
| Model Type | Pipe size mm. | Pipe size inch | Force type | Actuation Type | Force shape | Recommended Wall Thickness Schedule 40 | Kg | Request Quote |
|---|---|---|---|---|---|---|---|---|
| BCRR 0503 2048-1T | Ø 508 mm - Ø 1219 mm | 20" - 48" | Single Head Iron | Standard Flange | Trapezoidal Screw | - | Working Load: 1 Ton (1,000 kg) | I-Beam Clamp Mount | |
| BCRR 0503 2048-5T | Ø 508 mm - Ø 1219 mm | 20" - 48" | Single Head Iron | Heavy-Duty Flange | Trapezoidal Screw | - | Working Load: 5 Ton (5,000 kg) | I-Beam Clamp Mount | |
| BCRR 0503 2048-10T | Ø 508 mm - Ø 1219 mm | 20" - 48" | Single Head Iron | Extra Heavy Duty | Trapezoidal Screw | - | Working Load: 10 Ton (10,000 kg) | I-Beam Clamp Mount |
Critical Rigging Solutions Where Cranes Cannot Reach
Indispensable for congested plant piping, modular process skids, and refinery retrofits.
Elevated Pipe Rack Launching
Mounts along structural steel I-beams to roll pipe joints into multi-tier overhead racks without requiring continuous crane suspension.
Refinery & Petrochemical Retrofits
Provides safe, localized rolling support in congested operating plants where overhead clearance prevents crane boom entry.
Modular Process Skid Fabrication
Enables rapid pulling and fine alignment of heavy-wall piping modules during offshore and onshore skid pre-assembly.
Confined Tunnel & Vault Installations
Secures to structural steel beams in underground utility tunnels, power plant vaults, and compressor building bays.
