Pipe Raiser

Transport Two Large-Diameter Pipes (50" - 60") Safely on One Trailer

Transporting large-diameter pipe by road is constrained by legal height and width limits. Technical Pipeline's Pipe Raiser solves this by raising and securing one 50"-60" pipe above the other, cutting transport trips in half while staying strictly within legal road and rail envelopes.

Transports two large 50"-60" pipes on a single trailer simultaneously

Cuts pipeline freight costs and mobilization trips by up to 50%

Heavy-duty 28,000 kg combined payload rating for 14-meter joints

Complies strictly with legal highway height and width clearance limits

DOUBLE CAPACITY HALF THE TRIPS LEGAL DIMENSIONS

50" - 60"

Pipe Diameter (1270-1524 mm)

2 Pipes (28,000 kg)

Combined Load Capacity

14,000 mm

Max Pipe Joint Length

TRUSTED IN PIPELINE INDUSTRIES WORLDWIDE

PIPE MILL TRANSPORT

COATING PLANT HAULING

RAILWAY FREIGHT

SPREAD LOGISTICS

LOGISTICS EFFICIENCY Large-Diameter Pipe Road & Rail Transportation

PIPE TRANSPORT SYSTEMS & TRAILER RIGGING

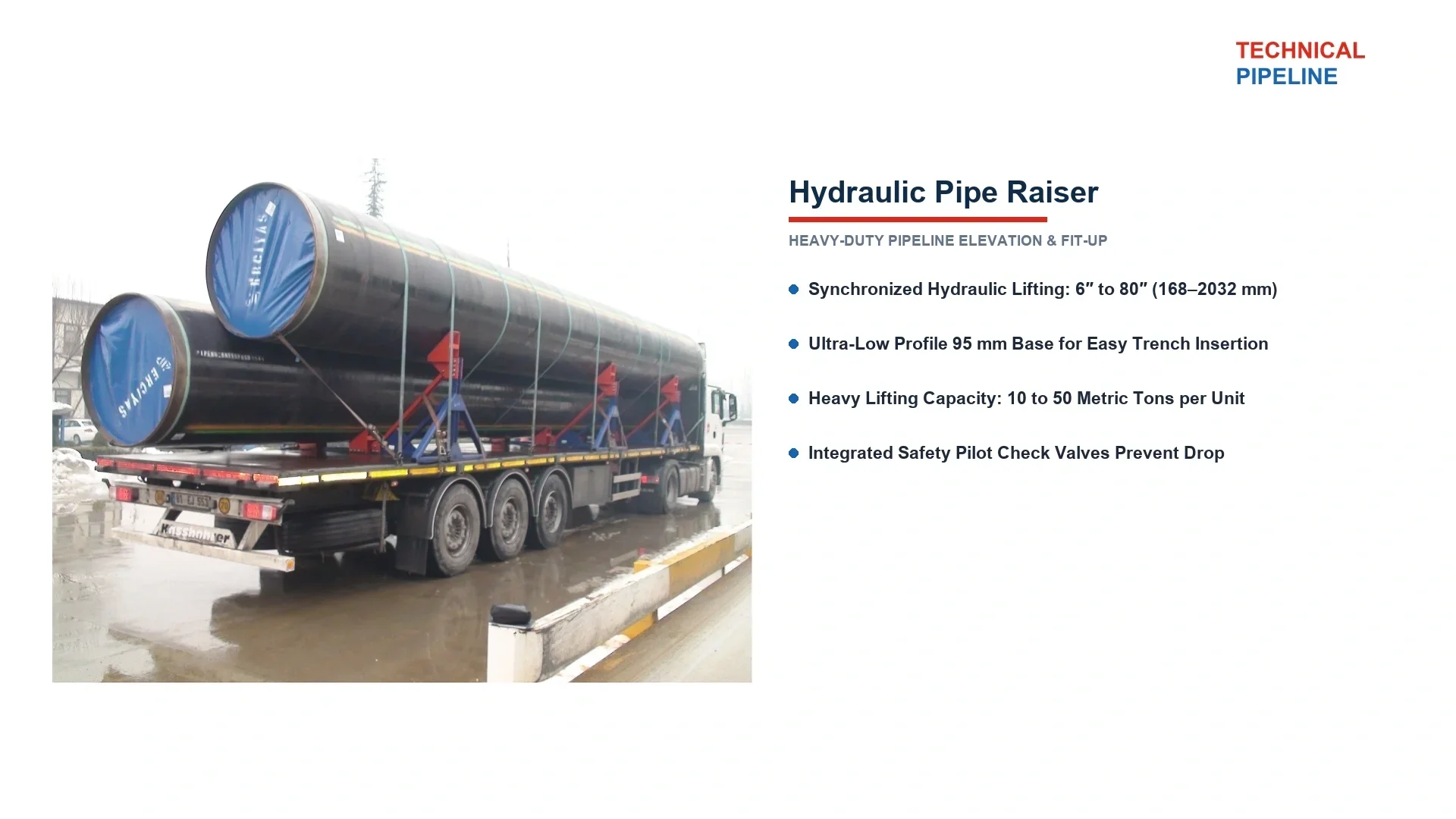

Large-Diameter Pipe Road & Rail Transportation

Engineered for flatbed semi-trailers, lowboys, and rail flatcars to transport two large-diameter coated pipes per trip without exceeding highway transport dimensions.

Clamping Range 1" – 16" (33.4 – 406.4 mm)

Recommended Wall Thickness & Schedules 1 – 15 mm | Schedule 10 to Schedule 80

Body Material & Contact Points High-strength alloy / carbon steel (Optional SS contact points)

Operation & Typical Use Manual, trapezoidal screw-adjustable | Shop & field tack welding

LOGISTICAL DESIGN

Overcoming Legal Road & Rail Dimension Bottlenecks

Transporting large-diameter pipe by road is constrained by legal height and width limits, which often means a single pipe fills an entire trailer. Technical Pipeline's Pipe Raiser solves this by letting two large-diameter pipes (50"-60") travel on one trailer at the same time one pipe is raised and secured above the other, keeping the combined load within maximum allowed transport dimensions. Built around a robust base construction with an anchoring rod, the Pipe Raiser is available in six standard models covering 50" to 60" (1270-1524 mm), each rated to carry two pipes up to 14,000 mm in length with a combined carrying capacity of 28,000 kg. Models for the larger end of the range (58"-60") use four side tables instead of three, adding support as pipe diameter and weight increase. The construction is easy to fit to a trailer or railway carriage, adjusts to different diameters within its range, and is built to withstand outdoor weather conditions across repeated use.

Technical Specifications

Pipe Diameter Range	50" - 60" (1270 - 1524 mm)
Number of Pipes Loaded	2 pipes per transport trailer / car
Maximum Pipe Length	14,000 mm (14.0 meters standard joint)
Total Payload Capacity	28,000 kg (combined load)
Support Side Tables	3 tables (50"-56"), 4 tables (58"-60")
Securing Mechanism	Heavy-duty anchoring tie-rod & cradle locking
Carrier Compatibility	Standard road semi-trailers, lowboys & rail flatcars
Weather Protection	All-weather anti-corrosion industrial coating

ENGINEERING ADVANTAGES

Designed for Maximum Freight Efficiency & Load Safety

Cuts pipeline logistics costs while protecting coated pipe integrity during transit.

50% FREIGHT SAVING

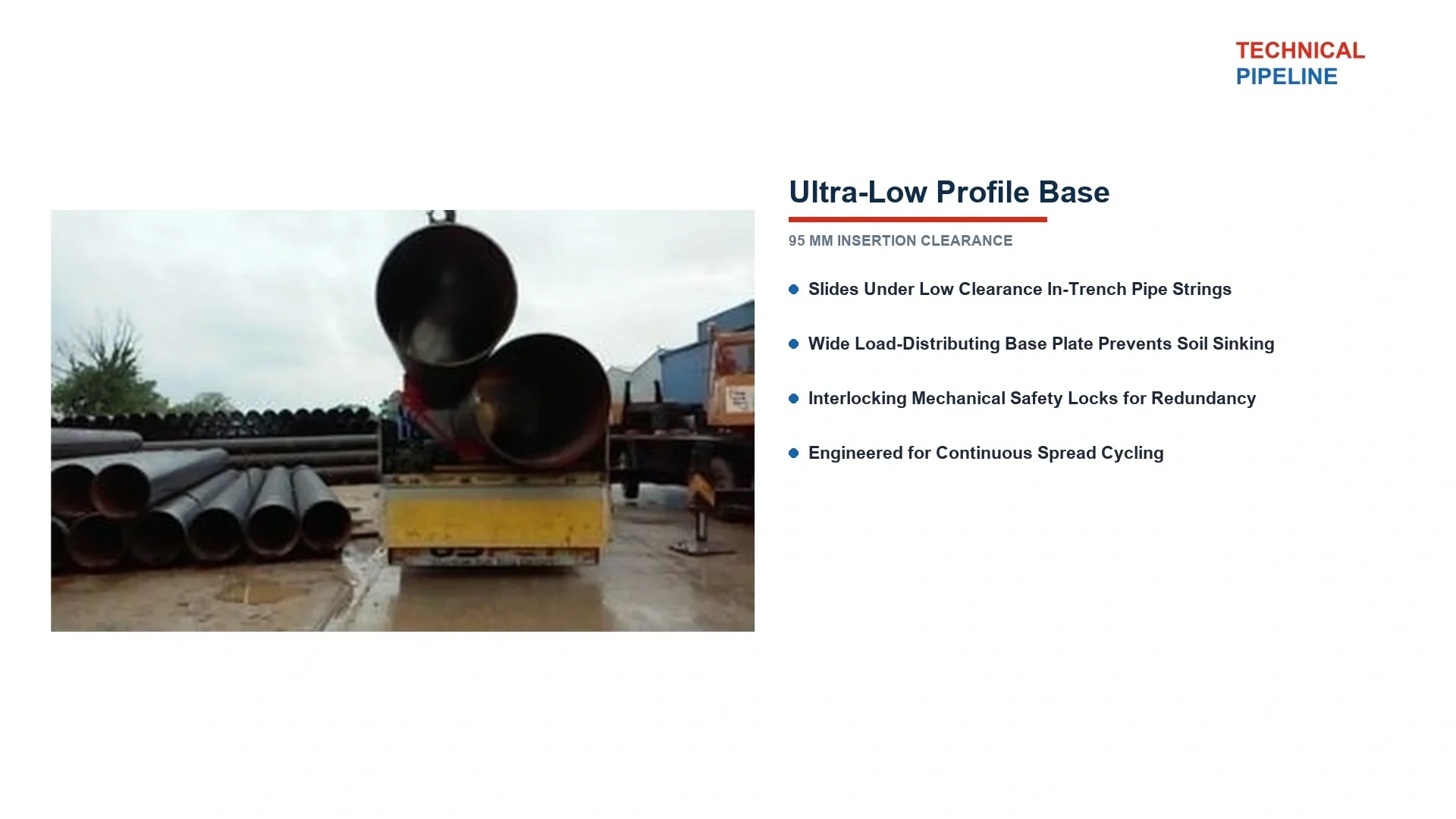

Two-Tier Stacking Geometry

Safely elevates the second pipe above the bottom joint, allowing two large 50"-60" pipes to ride on a single standard trailer.

NO OVERSIZE PERMITS

Legal Dimension Compliance

Keeps the overall transport envelope within highway regulatory width and height limits, avoiding expensive pilot cars and route detours.

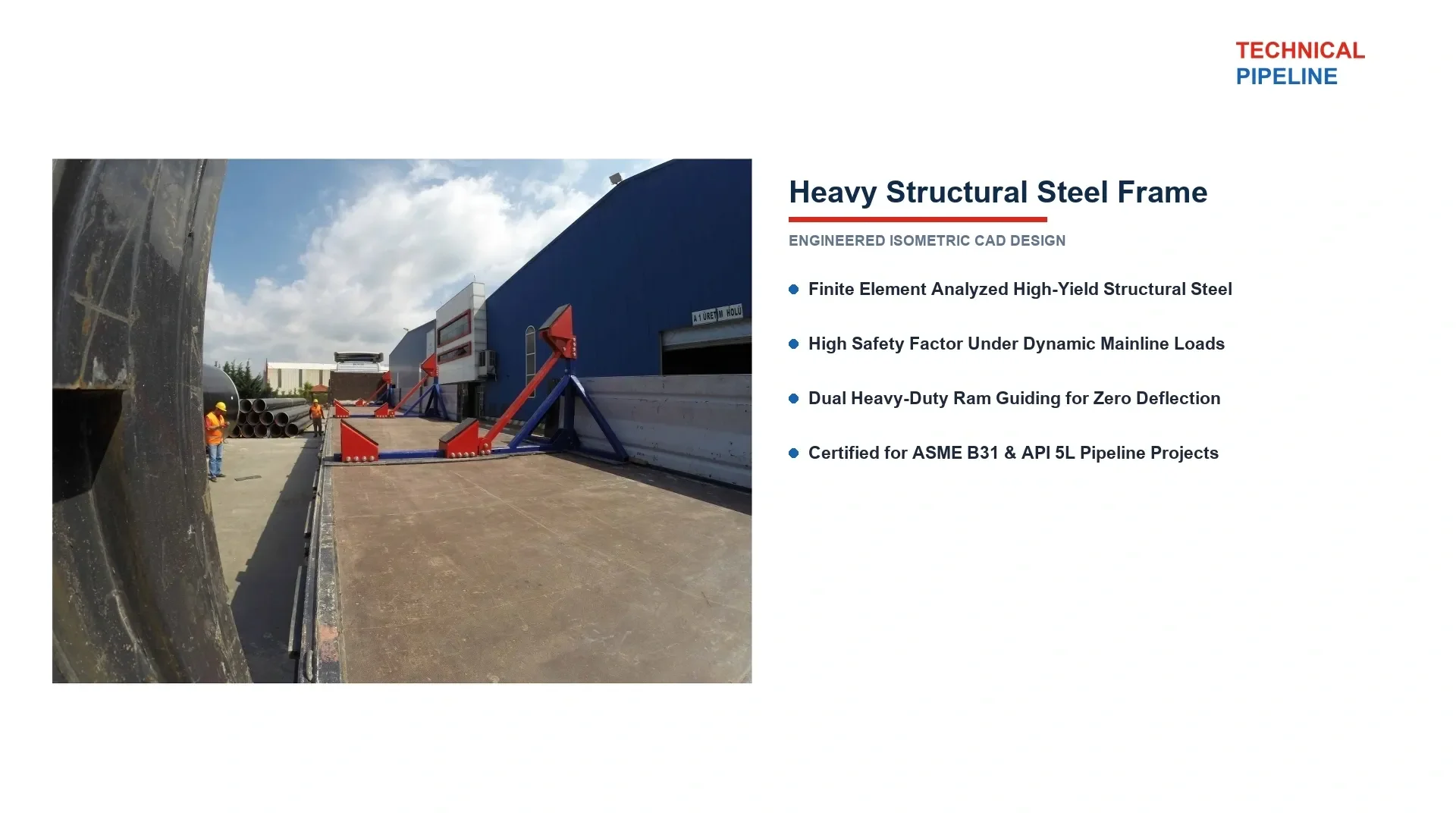

PAYLOAD CAPACITY

Heavy-Duty 28,000 kg Rating

Engineered structural steel framework safely handles the combined weight of two 14-meter heavy-wall transmission pipe joints.

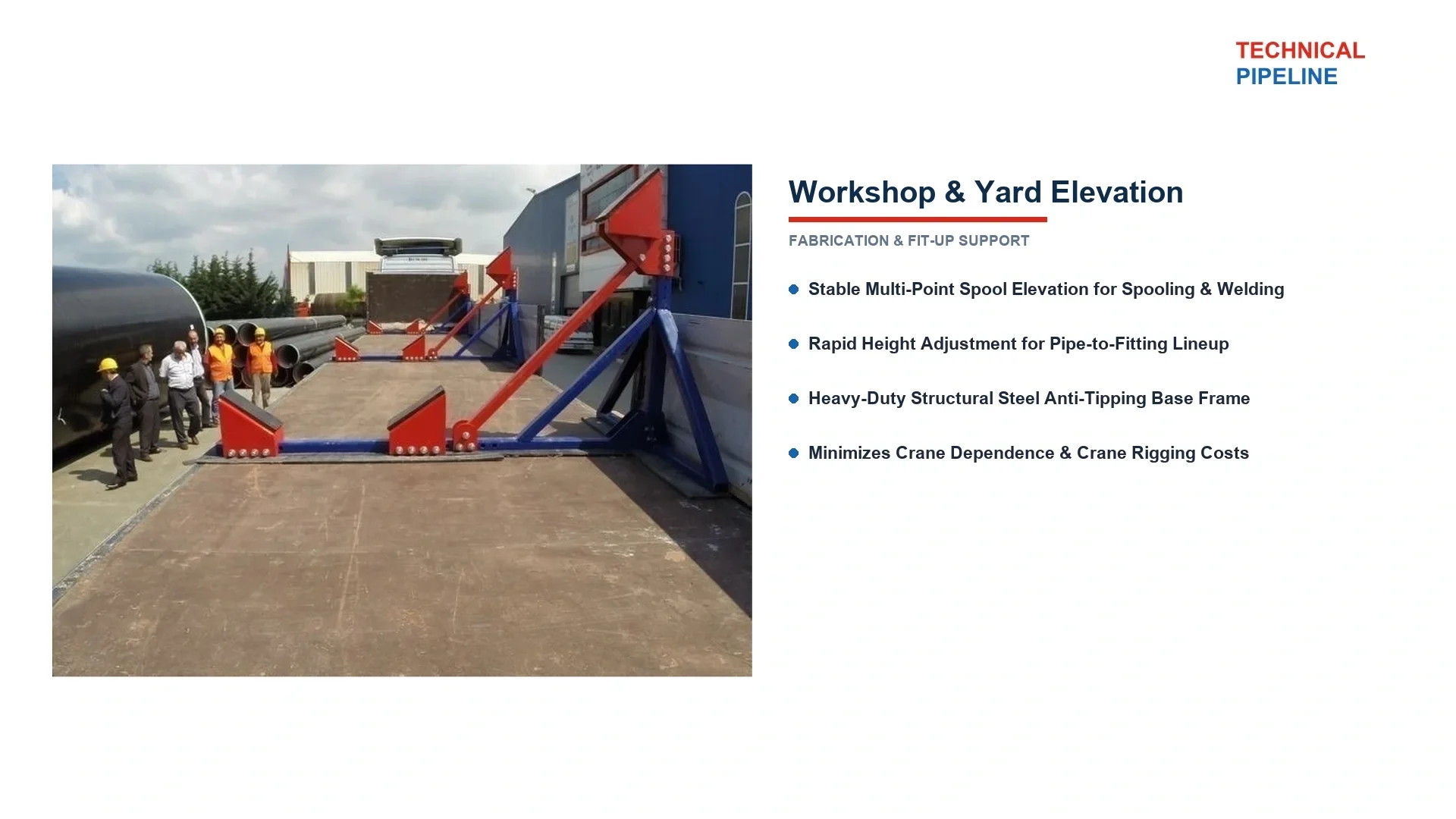

STABILITY ENHANCEMENT

4 Side Tables on 58"-60" Models

Scaled side support tables (3 on 50"-56", 4 on 58"-60") distribute weight evenly and prevent trailer deck flexing.

RAPID ATTACHMENT

Universal Trailer & Rail Mount

Quickly bolts or secures to flatbed semi-trailers, step-decks, lowbed trailers, and railway freight wagons.

COATING PROTECTION

Coating-Safe Contact Pads

Equipped with protective elastomeric contact points to eliminate surface scratching or holiday damage on 3LPE, 3LPP, and FBE coatings.

Pipe Raiser Sizing & Capacity Matrix (50" to 60")

Model Type	Pipe size mm.	Pipe size inch	Force type	Actuation Type	Force shape	Recommended Wall Thickness Schedule 40	Kg
TTPR 0502 50	Ø 1270 mm	50"	3 Side Tables \| Heavy-Duty Frame	Trapezoidal Screw	-	2 Pipes \| 28,000 kg	14,000 mm Length
TTPR 0502 52	Ø 1321 mm	52"	3 Side Tables \| Heavy-Duty Frame	Trapezoidal Screw	-	2 Pipes \| 28,000 kg	14,000 mm Length
TTPR 0502 54	Ø 1372 mm	54"	3 Side Tables \| Heavy-Duty Frame	Trapezoidal Screw	-	2 Pipes \| 28,000 kg	14,000 mm Length
TTPR 0502 56	Ø 1422 mm	56"	3 Side Tables \| Heavy-Duty Frame	Trapezoidal Screw	-	2 Pipes \| 28,000 kg	14,000 mm Length
TTPR 0502 58	Ø 1473 mm	58"	4 Side Tables \| Reinforced Frame	Trapezoidal Screw	-	2 Pipes \| 28,000 kg	14,000 mm Length
TTPR 0502 60	Ø 1524 mm	60"	4 Side Tables \| Reinforced Frame	Trapezoidal Screw	-	2 Pipes \| 28,000 kg	14,000 mm Length

Six standard models covering 50" to 60" (1270 - 1524 mm). Custom adaptations for railway flatcars and specialized lowbed trailers available.

TRANSPORT APPLICATIONS

Optimizing Pipeline Logistics from Mill to Right-of-Way

Dramatically reduces fuel, driver hours, and mobilization overhead on long-distance pipe hauling.

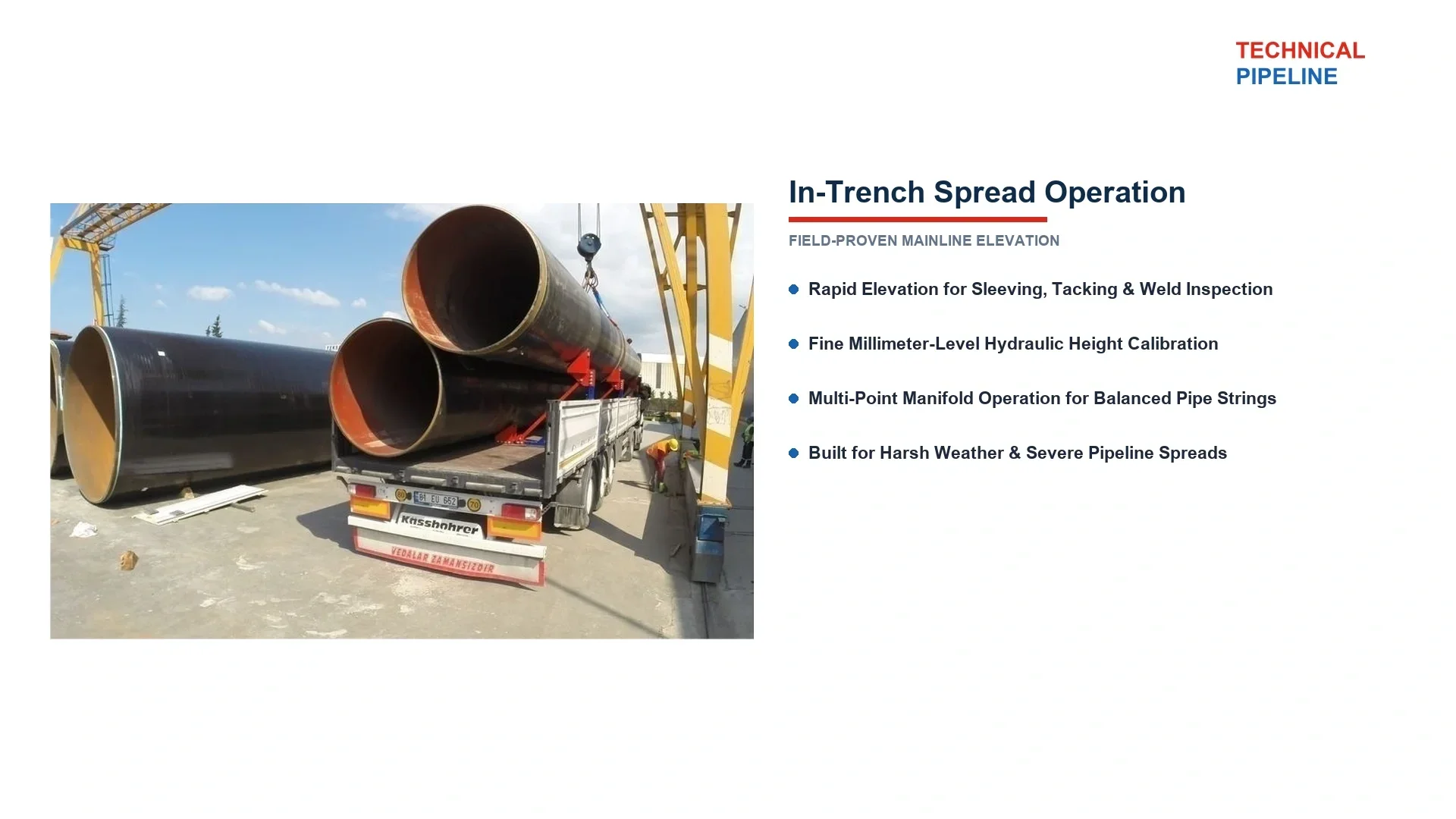

Mill to Coating Plant Hauling

Transports bare pipe joints from manufacturing mills to external coating facilities with doubled capacity per truckload.

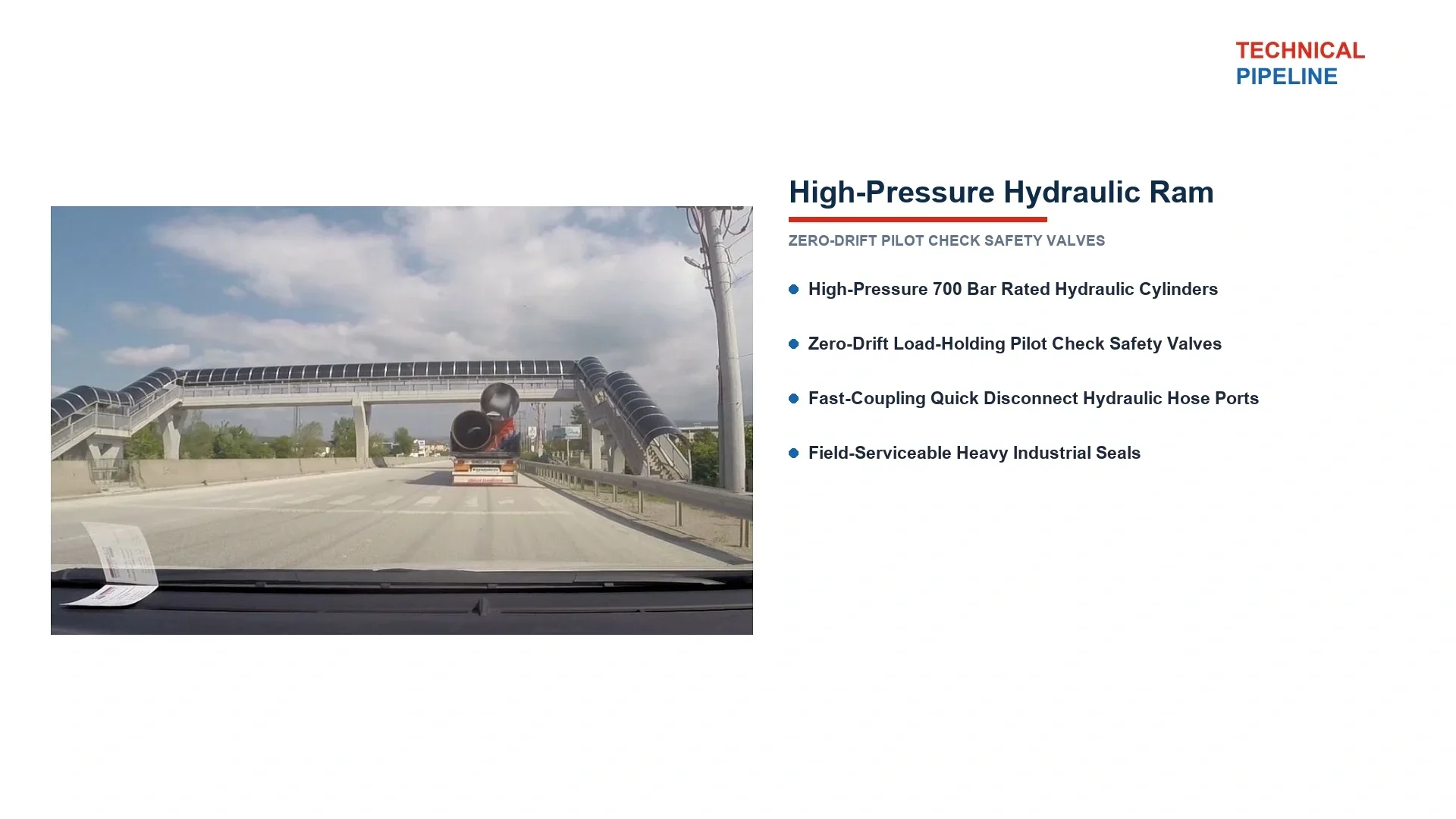

Long-Distance Highway Freight

Halves the required fleet size and convoy permits when shipping 50" to 60" transmission line pipes over long distances.

Railway Flatcar Transport

Secures two large-diameter pipes per railway carriage for high-volume cross-country bulk rail transport.

Right-of-Way Stringing Drops

Delivers two pipe joints directly to the pipeline trench-side stringing spread in a single truck movement.
